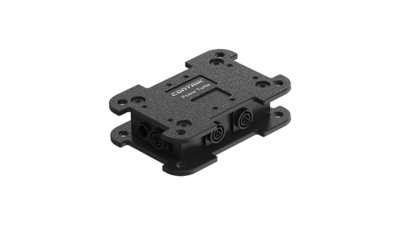

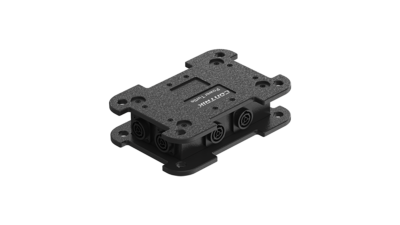

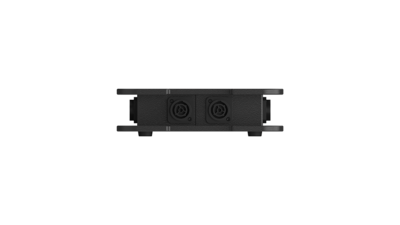

Power Turtle X CPTX-T1-T7 (EU)
1 x powerCON TRUE1 TOP In- 7 x powerCON® TRUE1® TOP Out - Indoor (IP20)
US version: Power Turtle X CPTSX-T1-T7 USA
Power Turtle Xtreme Indoor (X) is a compact distribution solution for mobile applications. This distribution box is ideally suited for Indoor applications with restricted space / height and harsh usage conditions, for example in theaters, exhibition or similar applications. It also offers a very attractive price point.
Features & Benefits
- Very compact, reduced height
- Extreme robust and safe EASYLEN® housing with leather grain texture
- Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
- Flame retardant (UL94-V2) and non-conductive housing material
- High mechanical protection (high IK)
- Light weight, and stackable housing design
- Versatile mounting options
- Attractive price point
Downloads
Drawing Power Turtle CPTX-T1-T7 1035597
pdf - 312.79 KB
Drawing Power Turtle CPTX-T1-T7 1035597
vnd.dwg - 330.73 KB
BDA 675 V1 - CONTRIK Manual - Power Strip XO and Power Turtle XO- CPVT - 202307
pdf - 1.24 MB
BDA 685 V1 - CONTRIK Manual - Power Strip XO and Power Turtle XO- CPVT - 202307
pdf - 1.24 MB
Technical Information
| Product | |
|---|---|
| Input device | 1x powerCON® TRUE1® TOP |
| Output device | 7x powerCON® TRUE1® TOP |
| Daisy chaining | 1x powerCON® TRUE1® TOP |
| Electrical | |
|---|---|
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0.5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 16A (USA: 20A) |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Dimensions | 220 x 150 x 65 mm |
| Conductor cross section | 2,5 mm² |
| Weight | 1.0 kg |
| Mounting options | Truss clamp, mounting wholes for pegging or suspension |
| Type of construction | Stackable |
| Material | |
|---|---|
| Housing | Easylen |
| Color | black |
| Environmental | |
|---|---|
| Standards compatibility | UL94-V2 |
| Protection class | IP20 |
| Temperature range | -25 °C to +70 °C |
Accessories
Market & Application
- Markets. Professional video wall / lighting / audio
- Mobile application. Festivals, live events, exhibitions
- Semi-permanent applications. Theaters, studios
Article order data
| Article name | Details | Order code |
| CPTX-T1-T7 | IN: powerCON® TRUE1® TOP OUT: 7x powerCON® TRUE1® TOP Indoor (IP20) | 1035597 |
